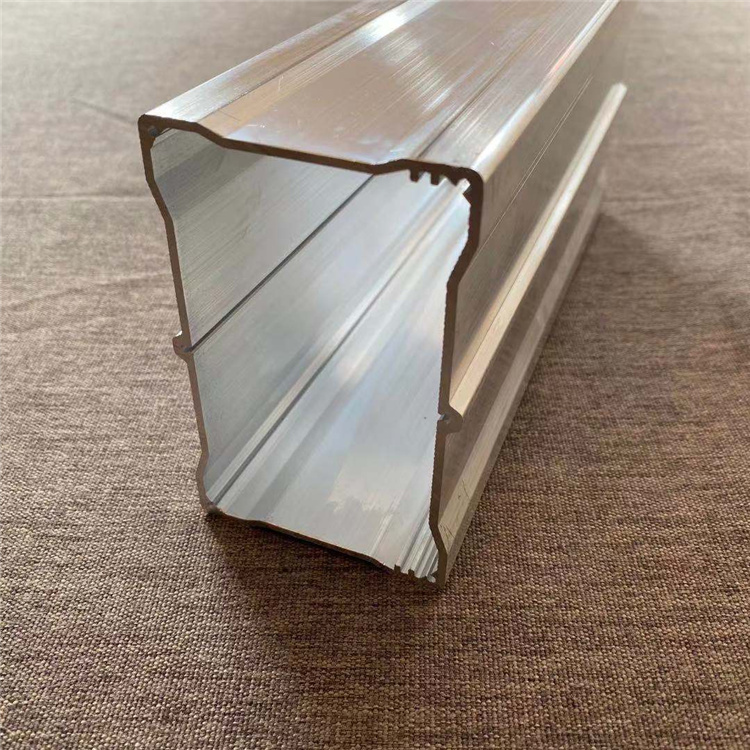

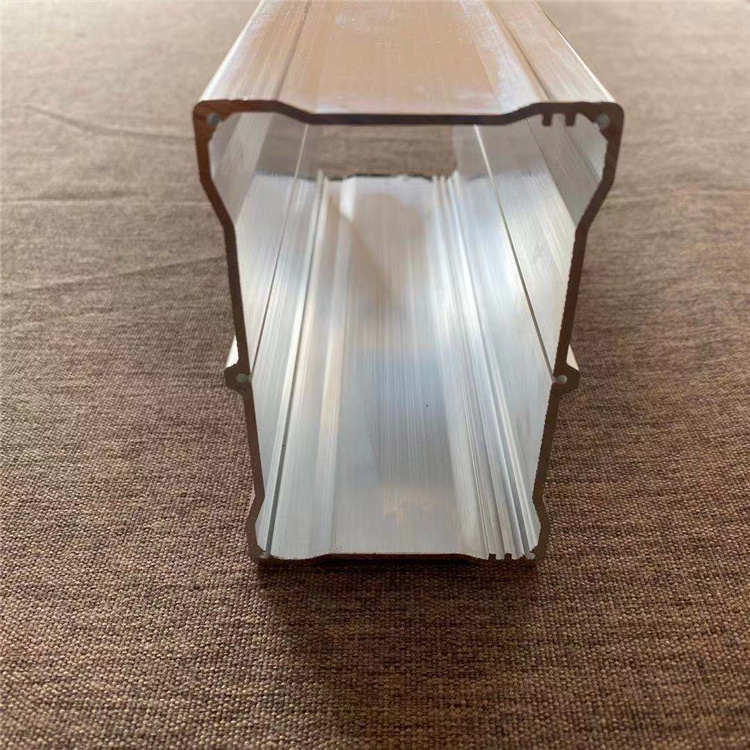

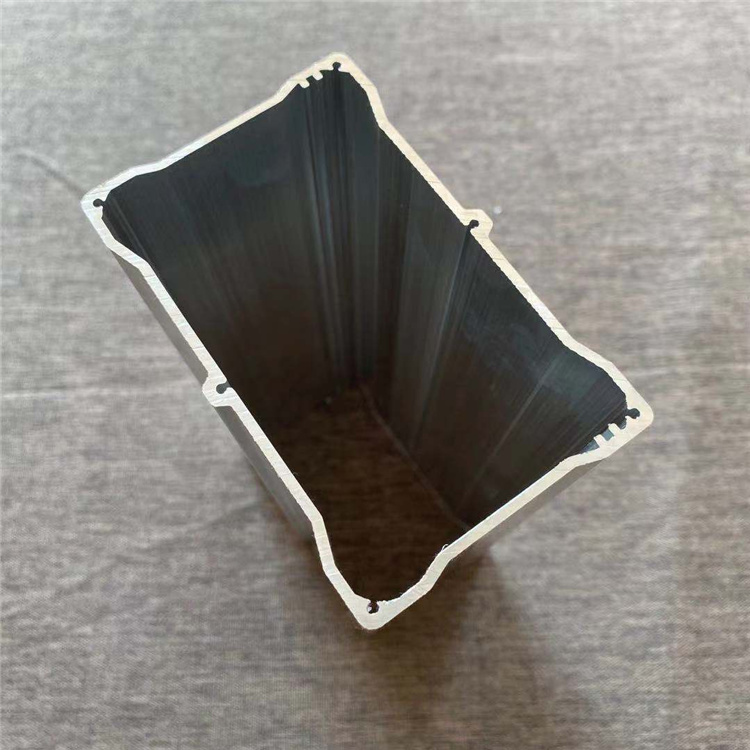

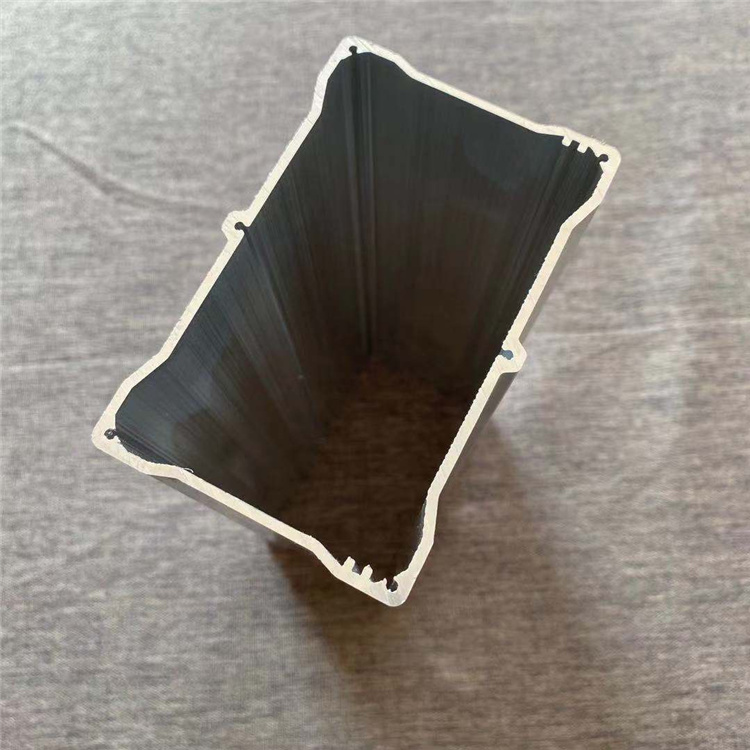

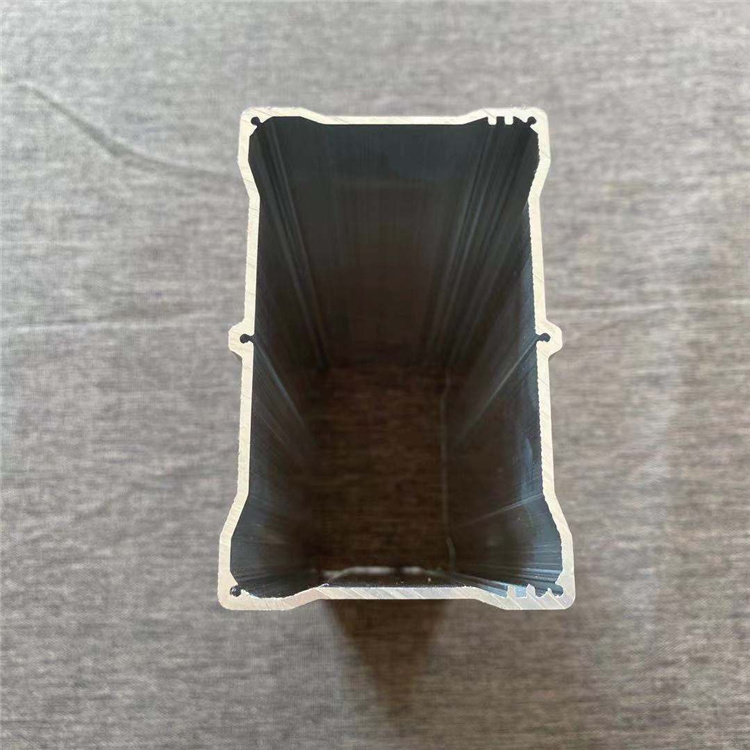

1, Aluminum extrusion profile
2, Aluminum alloy:6000 series
3, Deep processing: drilling, punching, milling, accurate cutting, CNC, assembly line work etc
4, All kinds of surface treatment: anodizing, electrophoresis, powder coating, wooden printing, sandblasting, matte, dye, small anodizing, polishing, brushing etc
5, Focus on quality for 16 years
6, Have 16 years experience of product development, design and service
General Chemical of alloy
Alloy | 6063(%) | 6063A(%) | 6061(%) |
Si | 0.2-0.6 | 0.3-0.6 | 0.4-0.8 |
Fe | <0.35 | 0.15-0.35 | <0.7 |
Cu | <0.1 | <0.1 | 0.15-0.4 |
Mn | <0.1 | <0.15 | <0.15 |
Mg | 0.45-0.9 | 0.6-0.9 | 0.8-1.2 |
Cr | <0.1 | <0.05 | 0.04-0.35 |
Zn | <0.1 | <0.15 | <0.25 |
Ti | <0.1 | <0.1 | <0.15 |
Other single | 0.05 | 0.05 | 0.05 |
Other | 0.15 | 0.15 | 0.15 |
Mechanical Properties of Section under room temperature
Alloy | State | Tensile strength test | Hardness test | ||||
Tensile strength |
Specified non-proportional elongation stress |
Elongation | thickness of sample | HV | HW | ||
% | mm | HV | HW | ||||
No less than | |||||||
6061 | T4 | 180 | 110 | 16 | - | - | |
T6 | 265 | 245 | 8 | - | - | ||
6063 | T5 | 160 | 110 | 8 | 0.8 | 58 | 8 |
T6 | 205 | 180 | 8 | - | - | - | |
6063A | T5 | 200 | 160 | 5 | |||
T6 | 230 |
160 |
5 |
Yes,we can.Do not worry about the quantity,any small order quantity is always best welcome.You can feel free to choose and confirm your need order quantity.We will provide different production ways based on your quantity.
Of course yes,we are a professional manufacturer,so we could supply the best competitive price without any middlemen.I will try my best to supply you lowest prices.
All 6000 series of profiles are available and T4/T5/T6 are also manageable.
Largest extrusions:400mm.
Anodized profiles max. length:6.6 meter.
Powder coated profiles max. length:6.6 meter.
Yes,we do.We can provide drilling/punching/milling/accurate cutting/CNC/assembly line work etc.
We accept T/T,L/C,Western Union.
We have a powerful QC team to control the quality in every production process.We believe the best quality is our enterprise life.
Normally new die mould and sample about need 7-10 days.1×20 or 1×40 container order quantity about needs 15-25 days.But we will try our best to supply you according to your need time.
1.铝挤压型材
2.铝合金:6000系列
3.深加工:钻孔、冲孔、铣削、精密切割、CNC、流水线作业等。
4.各种表面处理:阳极氧化,电泳,粉末涂层,木纹转印,喷砂,哑光,染色,小阳极氧化,抛光,拉丝等。
5.专注品质16年
6.有16年的产品开发、设计和服务经验。
技术参数
合金 |
6063(%) |
6063A(%) |
6061(%) |
Si |
0.2-0.6 |
0.3-0.6 |
0.4-0.8 |
Fe |
<0.35 |
0.15-0.35 |
<0.7 |
Cu |
<0.1 |
<0.1 |
0.15-0.4 |
Mn |
<0.1 |
<0.15 |
<0.15 |
Mg |
0.45-0.9 |
0.6-0.9 |
0.8-1.2 |
Cr |
<0.1 |
<0.05 |
0.04-0.35 |
Zn |
<0.1 |
<0.15 |
<0.25 |
Ti |
<0.1 |
<0.1 |
<0.15 |
其它 |
0.05 |
0.05 |
0.05 |
其它 |
0.15 |
0.15 |
0.15 |
室温下截面的力学性能
合金 |
状态 |
抗拉强度测试 |
硬度测试 |
||||
抗拉强度 |
指定的非比例 伸长应力 |
伸长 |
样品厚度 |
HV |
HW |
||
|
|
% |
mm |
HV |
HW |
||
不少于 |
|||||||
6061 |
T4 |
180 |
110 |
16 |
- |
- |
|
T6 |
265 |
245 |
8 |
- |
- |
|
|
6063 |
T5 |
160 |
110 |
8 |
0.8 |
58 |
8 |
T6 |
205 |
180 |
8 |
- |
- |
- |
|
6063A |
T5 |
200 |
160 |
5 |
|
||
T6 |
230 |
160 |
5 |
